Description

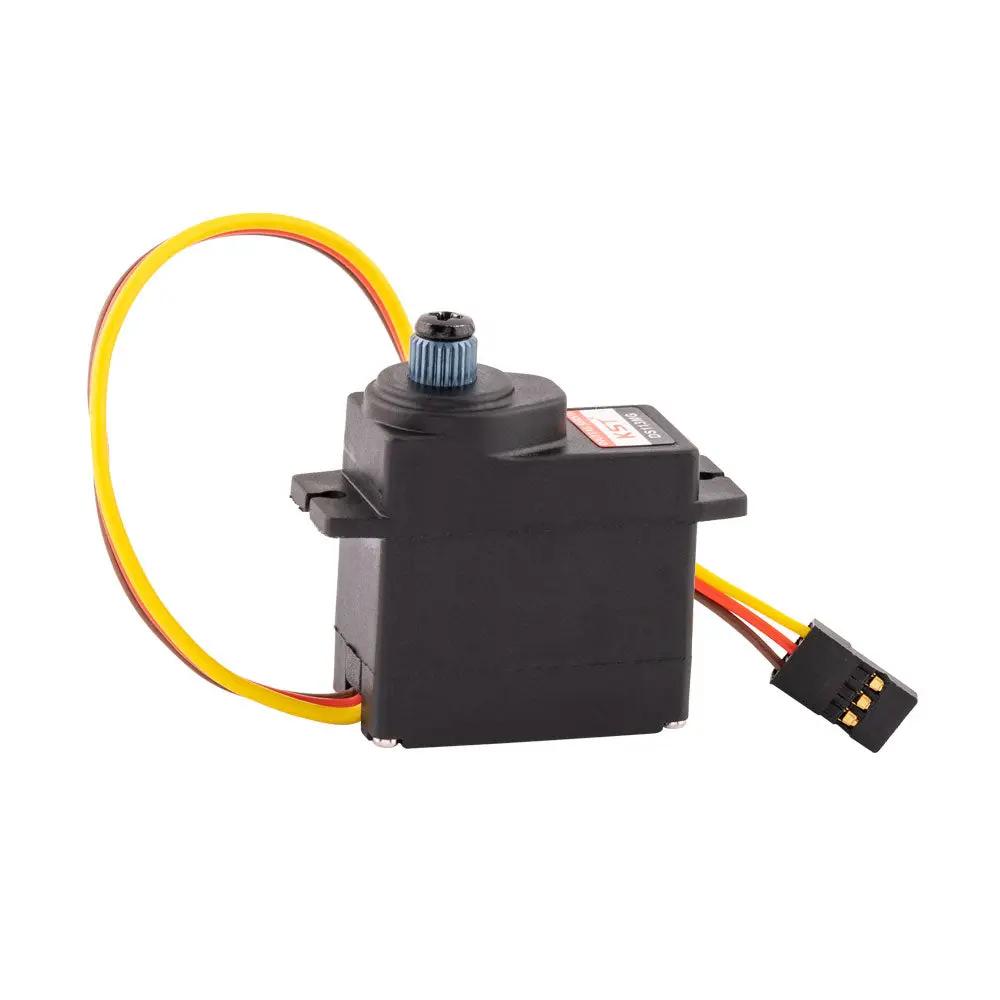

gear servo KST DS113MG V6.0 Digital Metal Gear Micro Servo 3.5kg 0.09secThe new DS113MG V6. 0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small size electric RC plane and glider fuselage. DS113MG V6. 0 servo can boast a brilliant 3. 5kgf. cm torque and and super fast 0. 09sec 60 speed at 8. 4V with great precision and reliability. Weighing only 12g makes DS113MG V6. 0 a great servo for small size electric RC plane and glider fuselage use. The DS113MG
The new DS113MG V6.0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small-size electric RC plane and glider fuselage. DS113MG V6.0 servo can boast a brilliant 3.5kgf.cm torque and and super fast 0.09sec/60° speed at 8.4V with great precision and reliability.
Weighing only 12g makes DS113MG V6.0 a great servo for small-size electric RC plane and glider fuselage use. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and it can run directly from a 2S LiPo without needing a regulator. Additionally, the newly added program feature can improve your flight experience to the next level. The DS113MG V6.0 is the high voltage replacement of the original DS113MG servo.
Features
- High Quality and Competitive Price
- Support for 4.8V-8.4V Voltages
- Programmable
- Excellent Heat Dissipation
- Compact and Lightweight Design
- Ultra High Torque & Excellent Speed
- Ideal for Small-size Electric RC Plane and Glider Fuselage
Specification
- Item: DS113MG V6.0 Digital Metal Gear Servo
- Rated Voltage: DC6.0V
- Voltage Range: DC4.8V-8.4V
- Torque: [email protected] / [email protected] / [email protected] / [email protected]
- Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
- Stalling Current: [email protected] / [email protected] / [email protected] / [email protected]
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50°=100° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Motor Type: Core Motor
- Case Material: Plastic
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 1BB
- Case Dimensions: 24mm*12mm* 26.3mm±0.2mm
- Weight: 12g±10%
Size
Package Includes
- 1 * DS113MG V6.0 Micro Servo
- 3 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
